Model

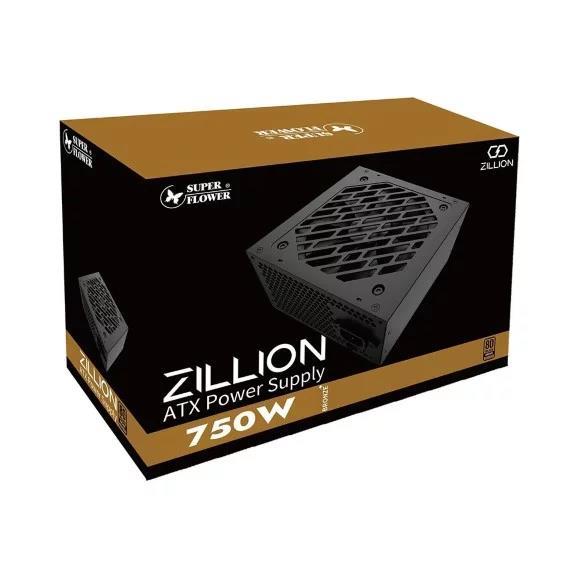

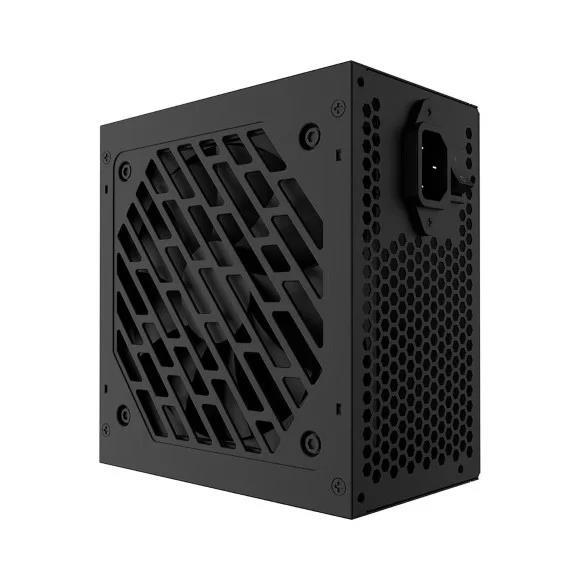

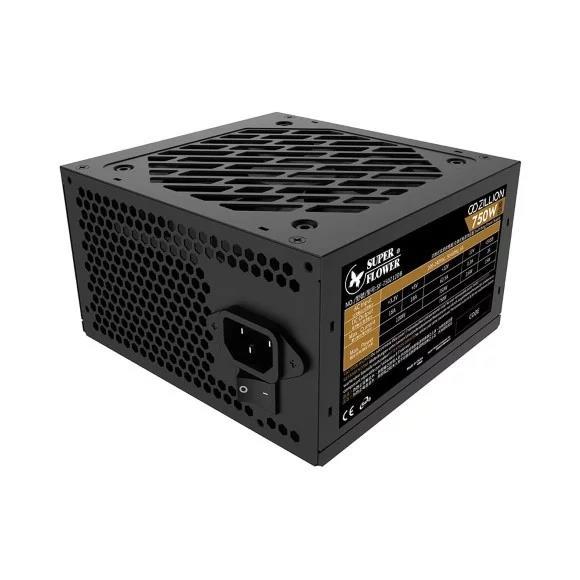

Zillion DB Bronze 750W
Wattage
750W
Efficiency
20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze)
Intel Power Design Guide
ATX 12V v2.3, EPS 12V v2.92 Specification.
AC Input / Frequency
200V~240V | 50-60Hz
Fan Size
120mm Sleeve Fan
Dimension
140mm(L) x 150mm(W) x 86mm(H)
Protection
OVP / OCP / OTP / SCP / OPP / NLP
Safety
TÜV / CB / CE / RoHS
Weight
Around 1.5 KG
Cable Spec
20+4Pin
Fixed Cables
1 (500 mm)
8Pin & (4+4Pin) CPU
2 (600mm+150mm)
SLI (2 x PCI 6+2pin)
2 (500mm+150mm)
3SATA + 1PATA
2 (450mm+150mm+150mm+150mm)
model no.: SF-750Z12DB
AC INPUT
200-240V~ 6A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
5VSB
Max Output Current
18A
62.5A
0.3A
3A
Max Combined Wattage
100W
3.6W
15W
