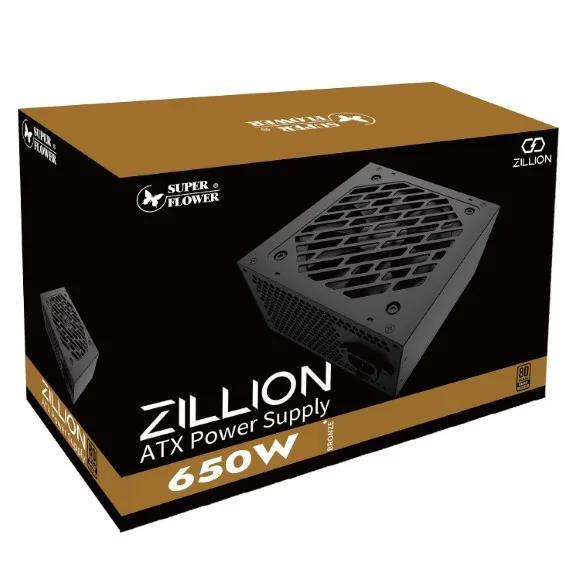

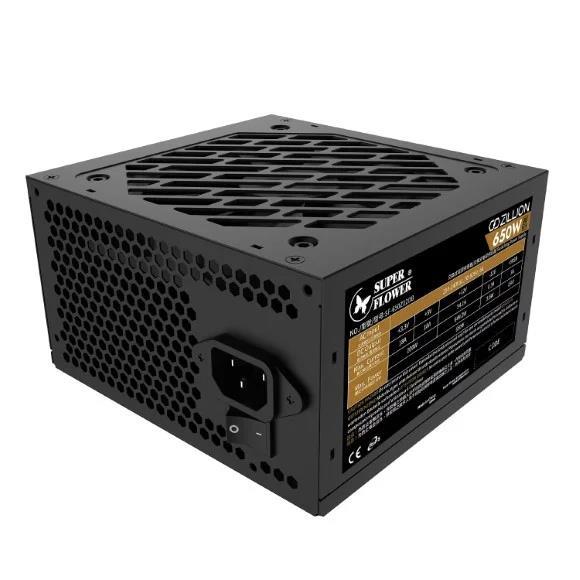

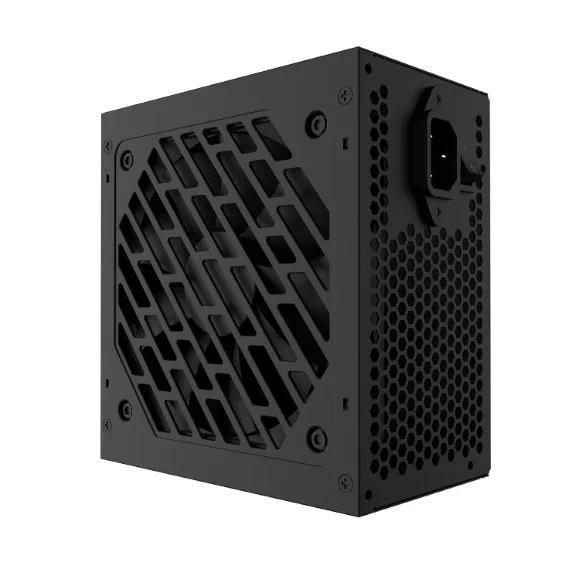

Super Flower Zillion 650W 80 Plus Bronze Power Supply

80 PLUS Bronze Certified
All Black Flat Cables
DC-DC Platform
105°C Taiwanese Capacitor
Brand: Super Flower
Availability: Out of Stock
Rs. 14,999

Wattage

650W

Efficiency

20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze)

Intel Power Design Guide

ATX 12V v2.3, EPS 12V v2.92 Specification.

AC Input / Frequency

200V~240V | 50-60Hz

Fan Size

120mm Sleeve Fan

Dimension

140mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OTP / SCP / OPP/ NLP

Safety

TÜV / CB / CE / RoHS

Weight

Around 1.5 KG

Cable Spec

20+4Pin

Fixed Cables

1 (500 mm)

8Pin & (4+4Pin) CPU

1 (600mm+150mm)

PCI (PCI 6+2pin)

1 (500mm)

SLI (2 x PCI 6+2pin)

1 (500mm+150mm)

3SATA + 1PATA

2 (450mm+150mm+150mm+150mm)



model no.: SF-650Z12DB

AC INPUT

200-240V~  6A  50-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

5VSB

650W

Max Output Current

18A

18A

54.1A

0.3A

3A

Max Combined Wattage

100W

649.2W

3.6W

15W

650W
