Wattage
850W
80+ Efficiency
20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold)
Intel Power Design Guide
EPS Ver. 2.92 & ATX 2.52
AC Input | Frequency
100V-240V | 60 / 50Hz , Full Range APFC

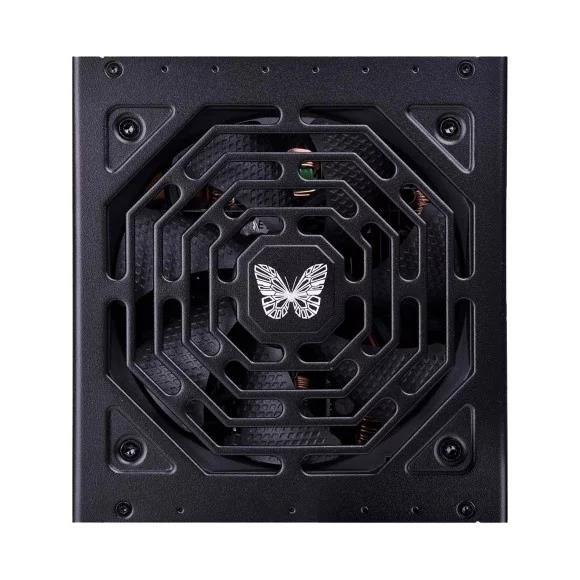

Fan Size
130mm F.D.B Fan
Dimension
160mm(L) x 150mm(W) x 86mm(H)
Protection
OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIP
Safety Certificates
cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC /CCC
Temperature
Passed 50℃ Hot Testing
Cable Wires
20+4 Pin
Detachable
One Cable (600mm)
8(4+4) Pin CPU
Two Cables (700mm)
SLI (2 x PCI 6+2 Pin)
Three Cables (550+150mm)
3SATA
Three Cables (550+120+120mm)

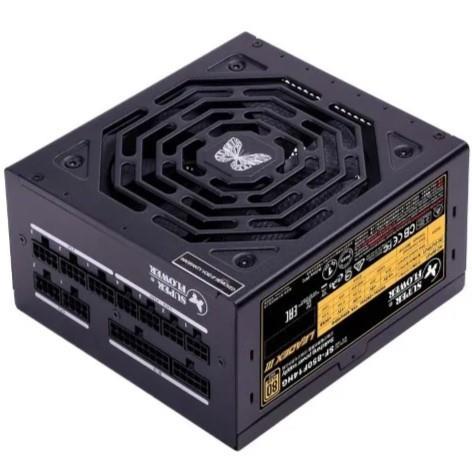

SF-850F14HG

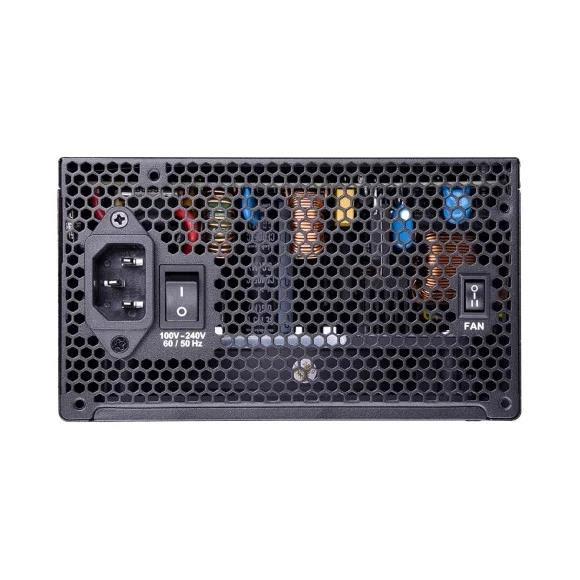

AC INPUT
100V-240V~ 10A 60Hz/50Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
Max Output Current
20A
70.8A
0.5A
3.0A
Max Combined Wattage
100W
849.6W
6W
15W
