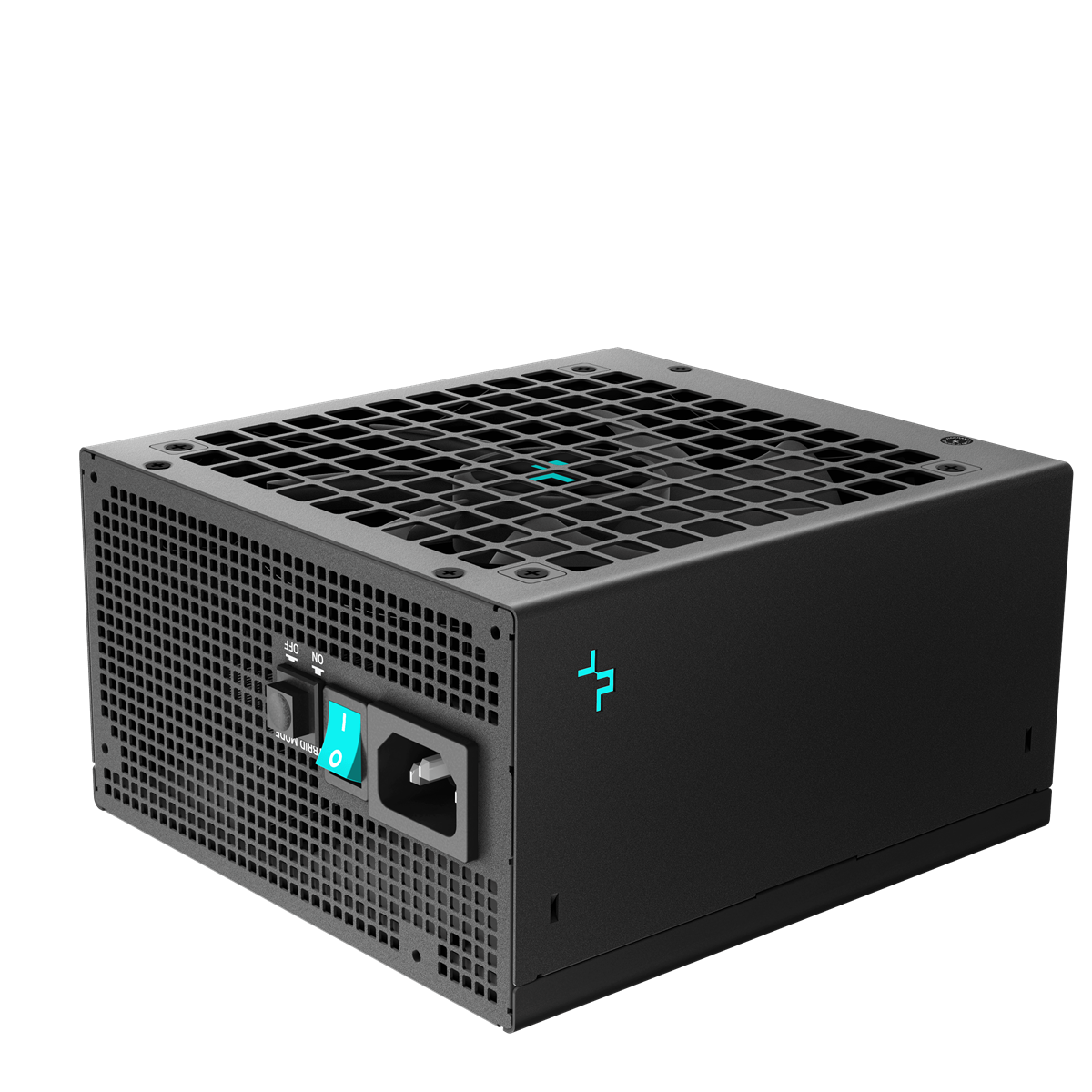

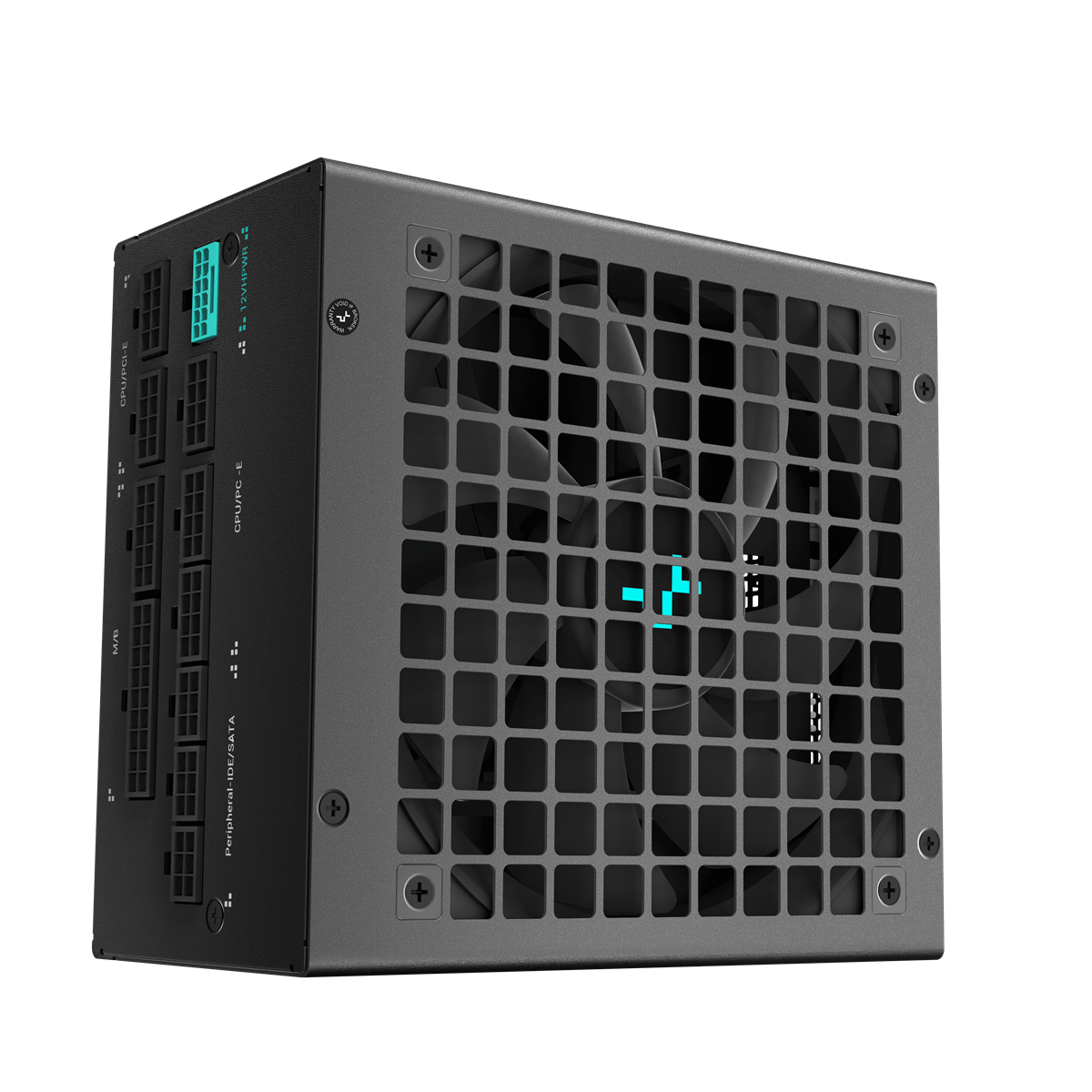

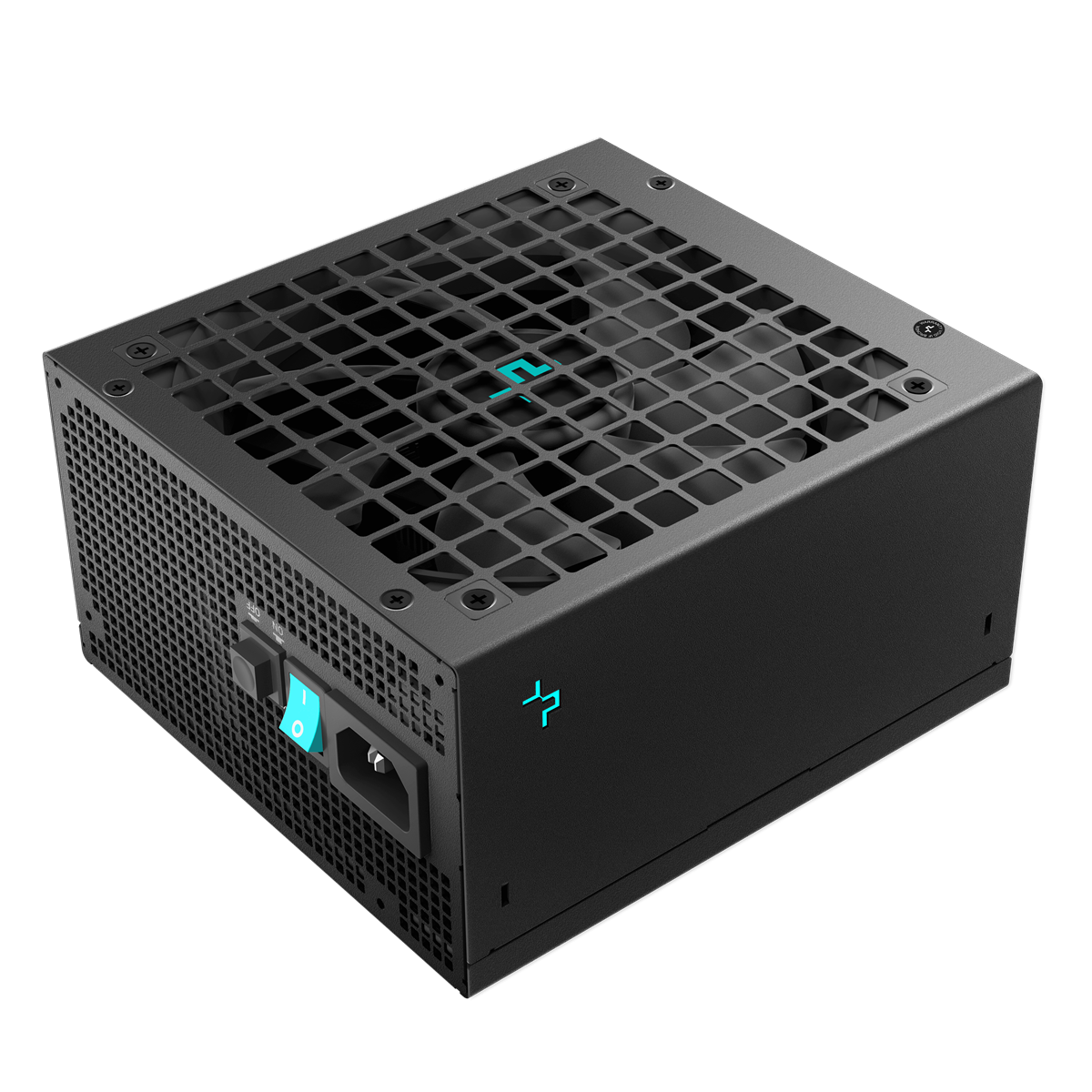

DeepCool PX1000G 1000W 80 Plus Gold Fully Modular Power Supply

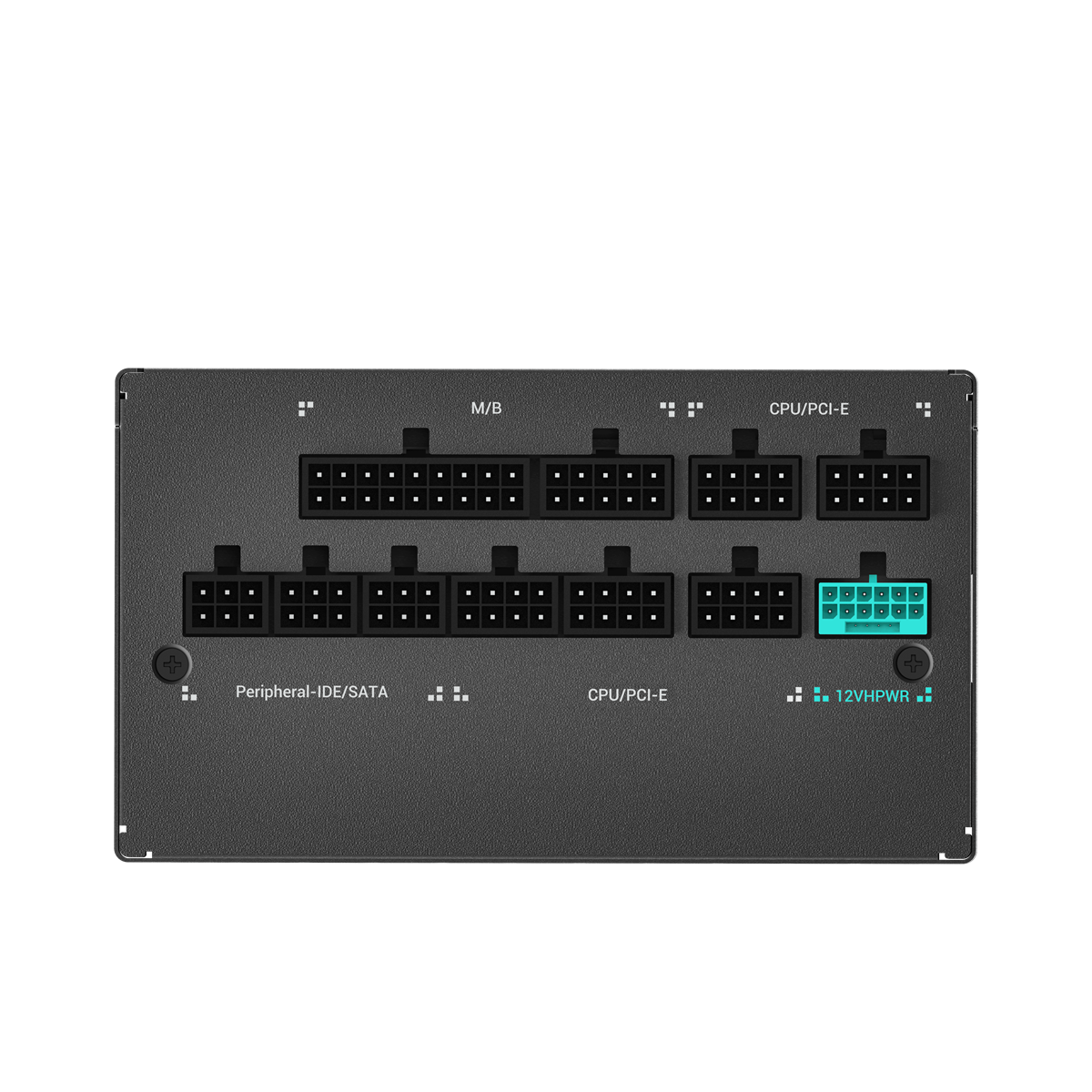

The DeepCool PX1000G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G provides stable power for a wide range of components.
Brand: DeepCool
Availability: In Stock
Rs. 57,499
TypeATX12V V3.0
Product Dimensions150×160×86mm (W x L x H)
Efficiency certification80Plus GOLD/Cybenetics_Platinum

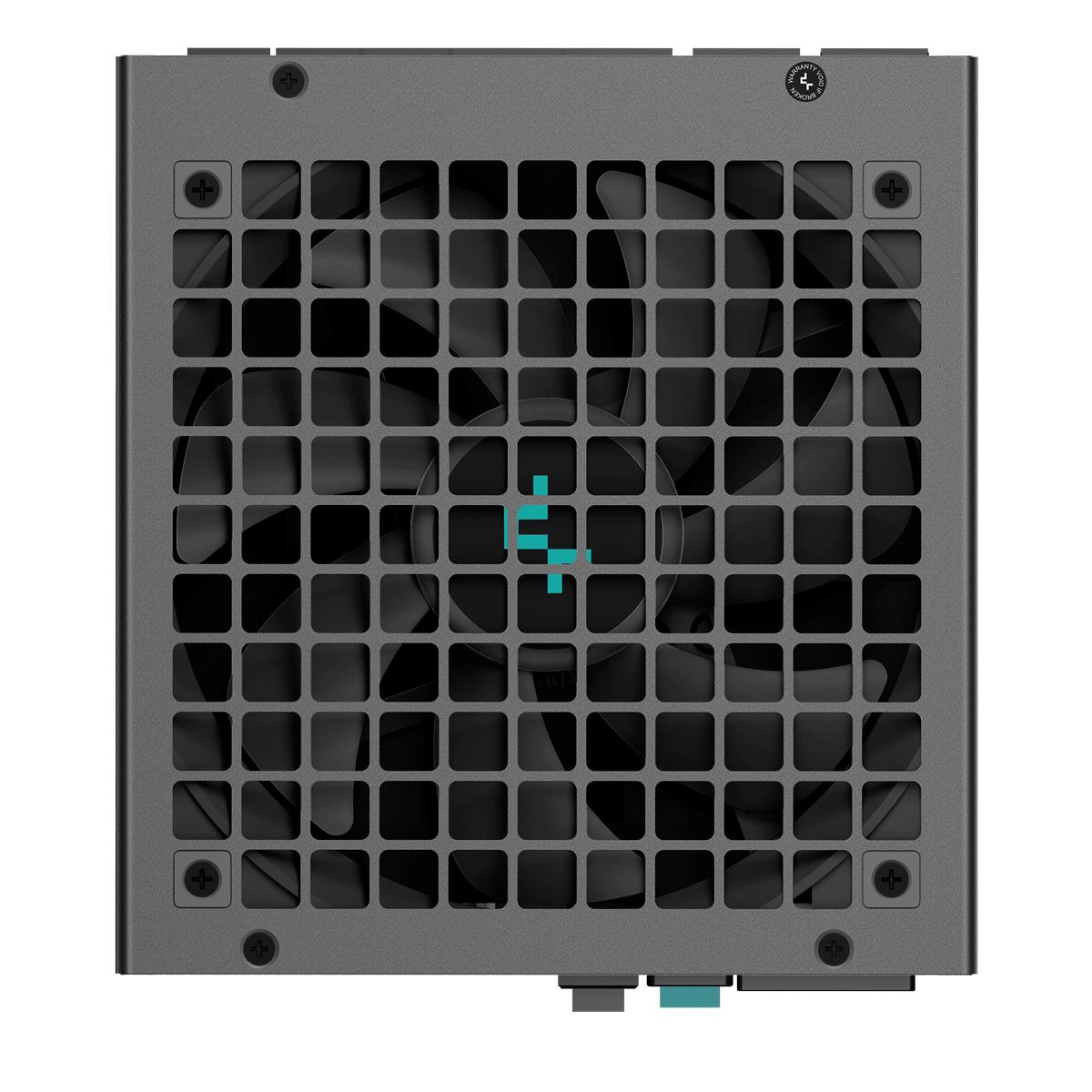

Fan Size135mm
Fan BearingFDB (Fluid Dynamic Bearing)
TopologyActive PFC + Half Bridge SRC LLC + DC to DC
CapacitorsFull Japan Electrolytic Capacitors
Power Good Signal100-150ms
Hold Up Time≥16ms
Efficiency≥90% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature0 – 40℃
RegulatoryCE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;
Erp RegulationErP 2014
Environment ProtectionWEEE/中国 RoHS/Triman
MTBF100,000 Hours
EAN P/N6933412716778 R-PXA00G-FC0B-CN
6933412716785 R-PXA00G-FC0B-AU
6933412716792 R-PXA00G-FC0B-EU
6933412716808 R-PXA00G-FC0B-JP
6933412716815 R-PXA00G-FC0B-UK
6933412716822 R-PXA00G-FC0B-US
6933412716839 R-PXA00G-FC0B-WO
6933412716846 R-PXA00G-FC0B-BP
