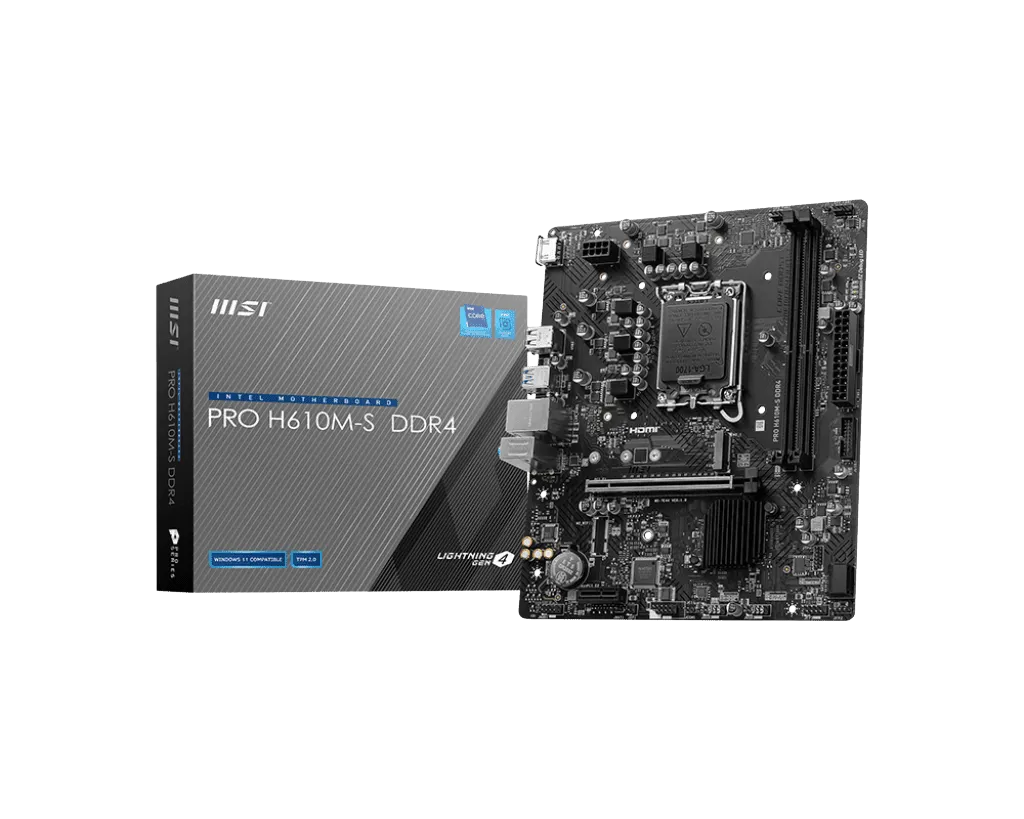

MSI PRO H610M-S DDR4 LGA1700 Micro-ATX Motherboard

MSI PRO H610M-S DDR4 LGA1700 Micro-ATX Motherboard

The MSI PRO H610M-S DDR4 model is a Micro-ATX motherboard on the Intel H610 chipset for the LGA1700 socket, designed for builders who want to reuse DDR4 memory with a modern Intel platform. It supports Intel Core 14th, 13th and 12th Gen processors, plus Intel Pentium Gold and Celeron processors, and it suits budget office PCs and home systems where existing DDR4 kits keep costs down.

Key Specifications

• Socket LGA1700 with Intel H610 chipset in a Micro-ATX form factor

• 2 DDR4 memory slots supporting up to 64GB, with DDR4 speeds from 1866 to 3200 MHz by JEDEC in dual-channel mode

• 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot

• 1 M.2 slot supporting PCIe 3.0 x4 for 2280, 2260 and 2242 devices, plus 2 SATA 6Gbps ports

• Realtek RTL8111H Gigabit LAN and Realtek ALC897 codec with 7.1-channel high definition audio

• HDMI 1.4 output with HDR supporting 4K at 30Hz, available only on processors featuring integrated graphics

• Rear USB: 2 USB 5Gbps Type-A ports and 4 USB 2.0 ports; front headers add 2 USB 5Gbps Type-A ports and 4 USB 2.0 ports

• 4 EZ Debug LEDs and TPM pin header supporting TPM 2.0

PCI-E Steel Armor

PCI-E Steel Armor protects the VGA card against bending and electromagnetic interference, adding mechanical strength to the graphics slot in a board often paired with a single discrete GPU. Core Boost uses a premium layout and digital power design to support more cores and provide better performance, Memory Boost delivers pure data signals for stability and compatibility, and the Lightning Gen4 solution offers up to 64GB/s of bandwidth for maximum transfer speed.

1. Reuse an existing DDR4 kit with a 12th, 13th or 14th Gen Intel Core processor for a cost-effective upgrade.

2. Install a PCIe 4.0 graphics card in the Steel Armor slot for gaming or accelerated work.

3. Fit a Gen3 M.2 SSD as the boot drive and use the two SATA ports for extra storage.
