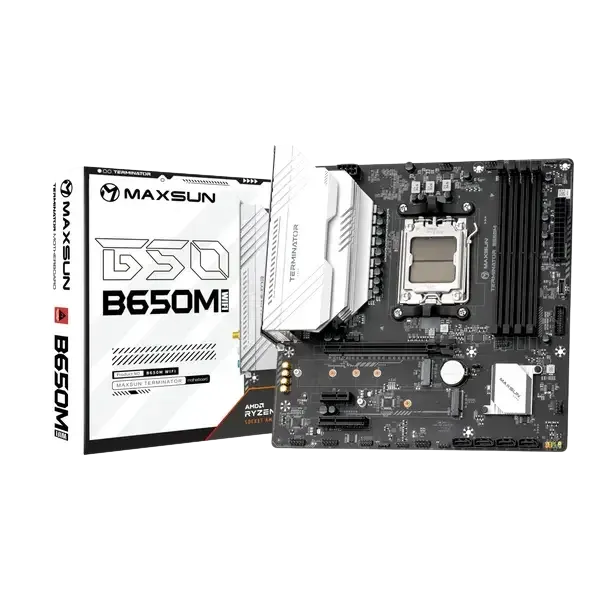

Maxsun TERMINATOR B650M WIFI6 AM5 DDR5 Micro-ATX Motherboard

Maxsun TERMINATOR B650M WIFI6 AM5 DDR5 Micro-ATX Motherboard

The Maxsun TERMINATOR B650M WIFI6 AM5 DDR5 Micro-ATX Motherboard is a step-up B650 board for Ryzen 7000, 8000 and 9000 Series processors up to 170W TDP, built for gaming PCs and content creation systems that need four DDR5 slots, PCIe 5.0 graphics and WiFi 6. Cooling armour, dual M.2 slots and dual 10Gbps Type-C connections give it a distinctly higher specification than entry-level AM5 boards.

Key Specifications

• AMD B650 chipset with AM5 socket for Ryzen 7000, 8000 and 9000 Series processors, up to 170W TDP

• 4 x DIMM DDR5 memory slots, dual-channel DDR5 up to 192GB, 4800 and 5200 MHz with overclocking support

• 8+2+1 phase 50A Dr.MOS power design

• 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 open slot and 1 x PCIe 3.0 x1 slot

• 2 x M.2 slots (one 2280 and 22110 PCIe x4 and x2 channel SSD, one 2280 PCIe x4 and x2 channel SSD) and 4 x SATA 3.0 ports, with RAID support

• Realtek RTL8125BG 2.5G Ethernet (1 x RJ45)

• Realtek 8852BE WiFi 6 (AX) wireless card with Bluetooth 5.2

• Realtek ALC897 codec with six rear audio interfaces, front audio pins and buzzer pin

• 1 x HDMI 1.4 port up to 4096x2160 at 30Hz with HDCP 2.2 and 1 x DisplayPort up to 4096x2160 at 60Hz

• Rear I/O: 4 x USB 3.2 and 3.1 Gen 2 ports, 4 x USB 2.0 ports, 1 x USB Type-C (10Gbps) port, WiFi antenna connectors and clear CMOS button; front USB Type-C (10Gbps) port included

• Cooling armour, network wake-up, PXE diskless boot and UEFI diskless boot support

• Micro-ATX form factor, 245 x 245mm

8+2+1 Phase Power with Dual 10Gbps Type-C Connections

The Terminator's 8+2+1 phase 50A Dr.MOS design supports processors up to 170W TDP, giving headroom for higher-core Ryzen chips in a Micro-ATX case, while the rear and front 10Gbps Type-C ports move large video files and backups far faster than standard USB ports. Cooling armour over the power stages helps the board hold those speeds during long renders or gaming sessions.

1. Install a Ryzen 7000, 8000 or 9000 Series AM5 processor up to 170W TDP

2. Populate the four DDR5 DIMM slots up to 192GB, starting with the second and fourth slots from the processor

3. Install a graphics card in the PCIe 5.0 x16 slot

4. Fit NVMe SSDs in the two M.2 slots and bulk drives on the four SATA 3.0 ports

5. Use the 10Gbps Type-C ports for fast external storage and the WiFi 6 card for wireless networking
