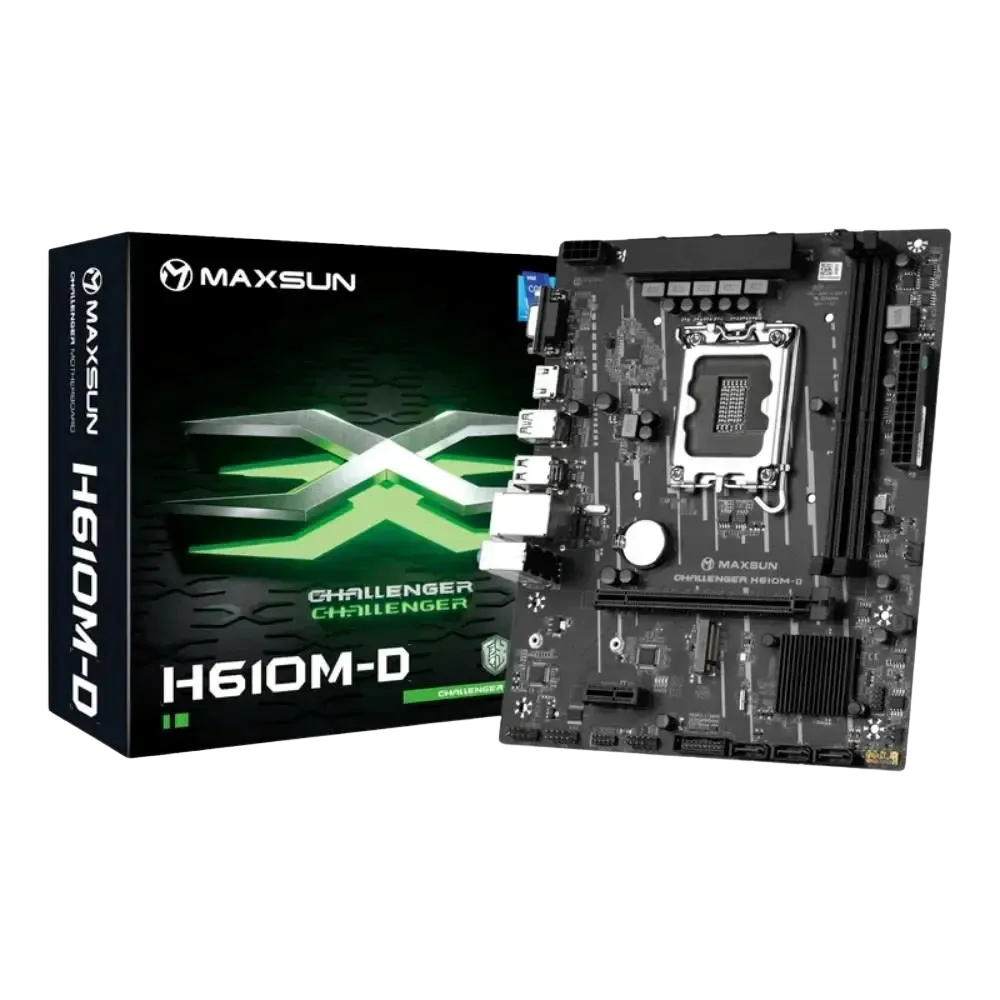

Maxsun CHALLENGER H610M-D LGA1700 DDR4 Micro-ATX Motherboard

Maxsun CHALLENGER H610M-D LGA1700 DDR4 Micro-ATX Motherboard

The Maxsun CHALLENGER H610M-D LGA1700 DDR4 Micro-ATX Motherboard is a compact entry-level Intel board on the H610 chipset for 12th and 13th Gen processors, made for office PCs, home desktops and budget gaming systems. A 6-phase power supply with an alloy heatsink module, a high-speed M.2 slot and dual HDMI and VGA display outputs give a small build solid, dependable fundamentals.

Key Specifications

• Intel H610 chipset with LGA1700 socket for 12th and 13th Gen Intel Core processors, Pentium Gold and Celeron processors

• 2 x DDR4 DIMM slots, maximum memory capacity 64GB, DDR4 3200(OC), 2933(OC), 2666(OC) and 2400(OC) MHz with Intel XMP 2.0 OC support and dual-controller dual-channel mode

• 6-phase high specification power supply with alloy power supply heatsink module and low temperature MOS

• 1 x PCIe 4.0 x16 slot and 1 x PCIe 3.0 x1 slot

• 1 x M.2 slot (Key M), type 2242 and 2280, supporting PCIe 3.0 x4 mode, plus 3 x SATA 6Gb/s ports

• Realtek RTL8111H 1G LAN

• Realtek ALC897 or Conexant CX20632 audio, 5.1-channel high definition audio

• 1 x VGA port up to 2048x1536 at 50Hz and 1 x HDMI port up to 4K at 30Hz

• Front USB: 2 x USB 3.2 Gen1 Type-A and 2 x USB 2.0; rear USB: 2 x USB 3.2 Gen1 Type-A and 4 x USB 2.0

• 4 x side-by-side debug LEDs and CLR_CMOS support

• Micro-ATX form factor, 225mm x 180mm

Alloy Power Heatsink and Side-by-Side Debug LEDs

The Challenger H610M-D's alloy power supply heatsink module helps the 6-phase power design stay cool under load, while four side-by-side debug LEDs give a quick visual read on boot progress during assembly or troubleshooting. Dual display outputs mean a processor with integrated graphics can drive two monitors for office multitasking.

1. Install a 12th or 13th Gen Intel processor in the LGA1700 socket

2. Fit dual-channel DDR4 memory across the two DIMM slots up to 64GB with an XMP profile

3. Use the M.2 slot for a PCIe 3.0 x4 NVMe boot drive

4. Add SATA drives on the three SATA 6Gb/s ports for extra storage

5. Install a graphics card in the PCIe 4.0 x16 slot or use VGA or HDMI from processor graphics
