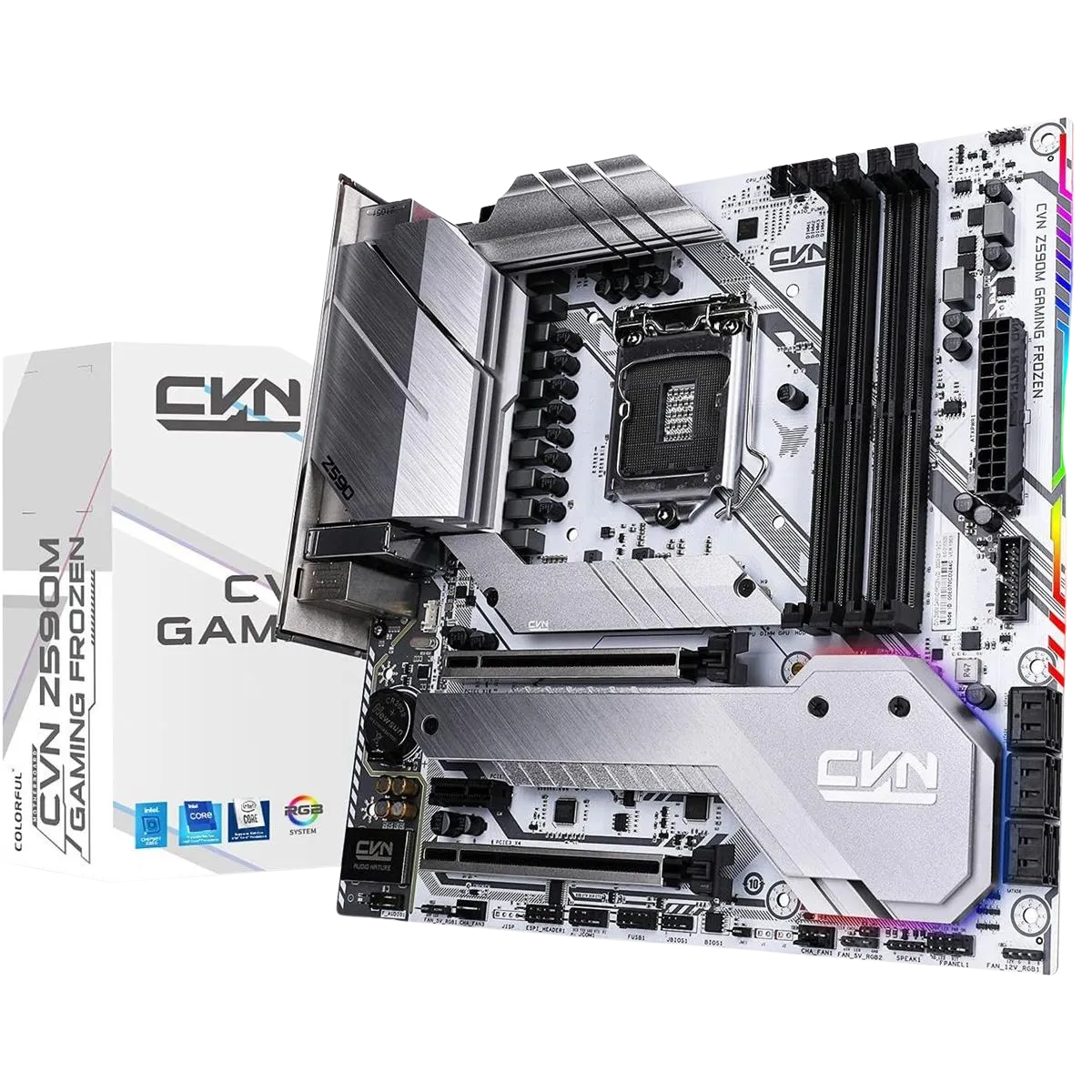

Colorful CVN Z590M GAMING FROZEN V20 LGA1200 DDR4 Micro-ATX Motherboard

Colorful CVN Z590M GAMING FROZEN V20 LGA1200 DDR4 Micro-ATX Motherboard

The Colorful CVN Z590M GAMING FROZEN V20 LGA1200 DDR4 Micro-ATX Motherboard moves the Frozen formula onto the Intel Z590 chipset for LGA1200, giving 10th and 11th generation Intel Core builders a white Micro-ATX gaming board with WiFi 6 included. It is the higher-chipset counterpart to the B560M Frozen board, with dual M.2 slots and generous USB connectivity for a compact gaming rig.

Key Specifications

• Intel Z590 chipset with LGA1200 socket for 10th and 11th generation Intel Core processors

• 4 DDR4 DIMM slots with dual-channel support at DDR4-3200/2933MHz, up to 128GB in retailer specification listings

• 2 M.2 slots supporting 2242/2260/2280 SSDs, with one PCIe Gen 4 x4 slot supported by 11th generation processors only and one PCIe Gen 3 x4, SATA, and Optane slot, plus 6 SATA 3.0 6Gb/s ports

• 1 PCIe 4.0/3.0 x16 slot, 1 PCIe 3.0 x4 slot, and 1 PCIe 3.0 x1 slot

• Rear I/O with 2 USB 2.0 ports, 2 USB 3.2 Gen 2 ports in Type-A and Type-C form, 4 USB 3.2 Gen 1 ports, HDMI, DisplayPort, PS/2, and 3 audio ports

• Realtek RTL8111H 1000M LAN plus WiFi 6 wireless LAN, and a 6-channel high-definition audio codec

• 128M UEFI BIOS in a 245mm x 245mm Micro-ATX layout

CVN Heat Dissipation Armor with iGame Center ARGB Control

The board carries CVN heat dissipation armor with a custom metal-armored PCIe slot, and its lighting runs through iGame Center software across two 5V 3-pin RGB pins and two 12V 4-pin RGB pins. Six protection technologies cover overload, overvoltage, static, moisture, lightning, and temperature protection, while the CNVi WiFi/BT module slot provides the wireless path alongside the wired Gigabit port.

1. Fit a 10th or 11th generation Intel Core processor in the LGA1200 socket and install DDR4 memory across the four slots.

2. Use the PCIe Gen 4 x4 M.2 slot with an 11th generation processor for the fastest SSD path, and the second M.2 slot for a PCIe Gen 3, SATA, or Optane drive.

3. Install a graphics card in the PCIe 4.0/3.0 x16 slot and expand through the PCIe 3.0 x4 and x1 slots as needed.

4. Connect over WiFi 6 or wired Gigabit LAN, and drive displays through HDMI or DisplayPort.
