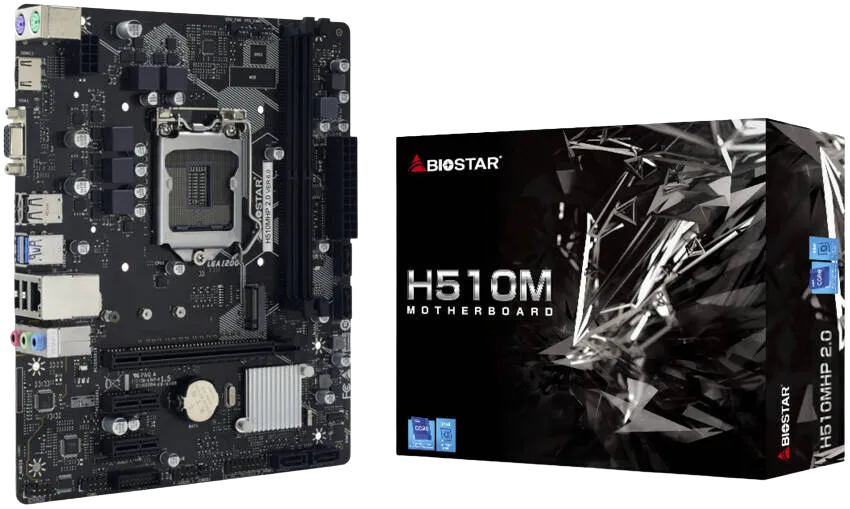

Biostar H510MHP LGA1200 DDR4 Micro-ATX Motherboard

Biostar H510MHP LGA1200 DDR4 Micro-ATX Motherboard

The Biostar H510MHP LGA1200 DDR4 Micro-ATX Motherboard is the most affordable route into Intel's 10th and 11th Gen platform, built on the H510 chipset for office PCs, study desktops and basic home systems. Its compact Micro-ATX frame keeps costs down while still providing an M.2 socket, four SATA ports and dual display outputs.

Key Specifications

• Intel H510 single chip architecture with LGA1200 socket for 10th and 11th Gen Intel Core, Pentium and Celeron processors

• 2 x DDR4 DIMM slots, dual-channel DDR4 1866, 2133, 2400, 2666, 2933 and 3200, up to 64GB maximum capacity

• 1 x PCIe 3.0 and 4.0 x16 slot, with PCIe 4.0 speed depending on Rocket Lake processors, plus 2 x PCIe 3.0 x1 slots

• 1 x M.2 (M Key) socket, type 2242, 2260 and 2280, supporting PCIe 3.0 x4 (32Gb/s) and SATA III (6Gb/s) SSDs

• 4 x SATA III (6Gb/s) connectors

• Intel I219V LAN, 10, 100 and 1000 Mb/s auto negotiation

• Realtek ALC897 audio codec, 7.1 channels, high definition audio

• 1 x HDMI port and 1 x VGA port

• USB: 4 x USB 3.2 Gen1 ports (2 on rear I/O and 2 via internal headers) and 6 x USB 2.0 ports (4 on rear I/O and 2 via internal headers)

• Hardware monitoring for CPU and system temperature, CPU and system fan control and CPU and DDR voltage monitoring

• Micro-ATX form factor, 18.5cm x 22.6cm

Entry-Level H510 Value with M.2 Storage and Dual Displays

For a basic desktop the H510MHP covers the two upgrades that matter most: an M.2 NVMe slot that makes even a modest processor feel responsive, and HDMI plus VGA outputs that drive both modern and older monitors from processor graphics. Hardware monitoring for temperatures, fans and voltages helps keep a small office PC running steadily.

1. Install a 10th or 11th Gen Intel processor in the LGA1200 socket

2. Fit dual-channel DDR4 memory across the two DIMM slots up to 64GB

3. Use the M.2 socket for a fast NVMe boot drive

4. Connect a monitor through HDMI or VGA when using processor graphics

5. Add SATA SSDs or hard drives on the four SATA III connectors for extra capacity
