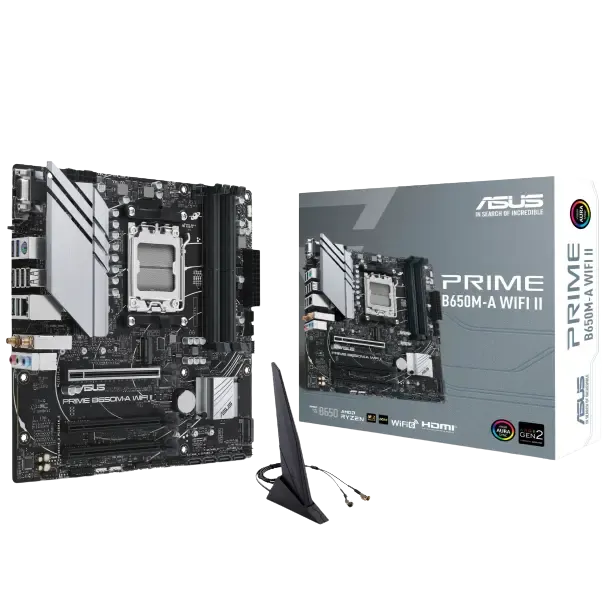

ASUS PRIME B650M-A WIFI II AM5 DDR5 Micro-ATX Motherboard

ASUS PRIME B650M-A WIFI II AM5 DDR5 Micro-ATX Motherboard

Adding wireless networking to the B650M-A II layout, the ASUS PRIME B650M-A WIFI II is a Micro-ATX DDR5 board on the AMD B650 chipset for AM5, suited to Ryzen builds placed away from the router.

Key Specifications

• Socket AM5 for AMD Ryzen 9000, 8000 and 7000 Series desktop processors, supporting CPUs up to 170W

• AMD B650 chipset with 4 DDR5 DIMM slots, up to 192GB, and DDR5 speeds up to 7600+MHz overclocked, with AMD EXPO support and OptiMem II routing

• 1 PCIe 4.0 x16 slot, at x16 mode for Ryzen 9000 and 7000 Series processors and x8/x4 mode for Ryzen 8000 Series processors, plus 2 PCIe 4.0 x16 slots at x1 mode

• 2 M.2 slots and 4 SATA 6Gb/s ports, with the first M.2 slot supporting PCIe 5.0 x4 mode for Ryzen 9000 and 7000 Series processors and the second supporting PCIe 4.0 x4 mode

• Realtek 2.5Gb Ethernet, WiFi 6 with 2.4 and 5GHz bands and Bluetooth 5.2

• DisplayPort, VGA and HDMI display outputs, with DisplayPort supporting up to 8K at 60Hz and HDMI supporting 4K at 60Hz

WiFi 6 With 2.5Gb Ethernet Fallback

WiFi 6 covers everyday wireless gaming and streaming, while the 2.5Gb Ethernet port is there for the desk setup where a wired link is available, so the same board adapts to either network layout without an add-in card.

1. Install a Ryzen 9000, 8000 or 7000 Series processor within the 170W limit.

2. Populate the four DDR5 slots for dual-channel memory up to 192GB.

3. Fit a graphics card in the PCIe 4.0 x16 slot and use the x1-mode slots for add-in cards.

4. Place the primary NVMe SSD in the PCIe 5.0 M.2 slot, add a second drive in the PCIe 4.0 M.2 slot, and connect over WiFi 6 or 2.5Gb Ethernet.
