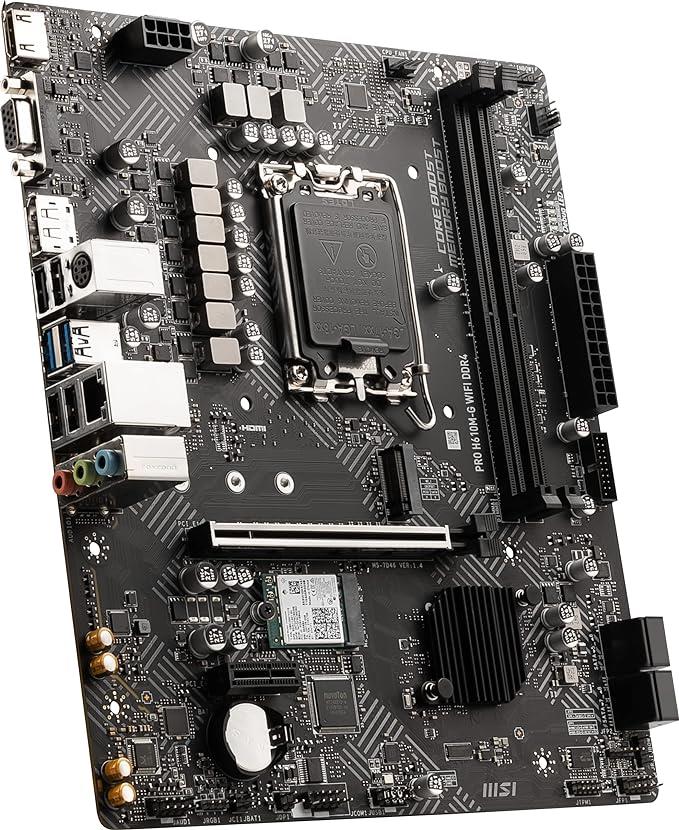

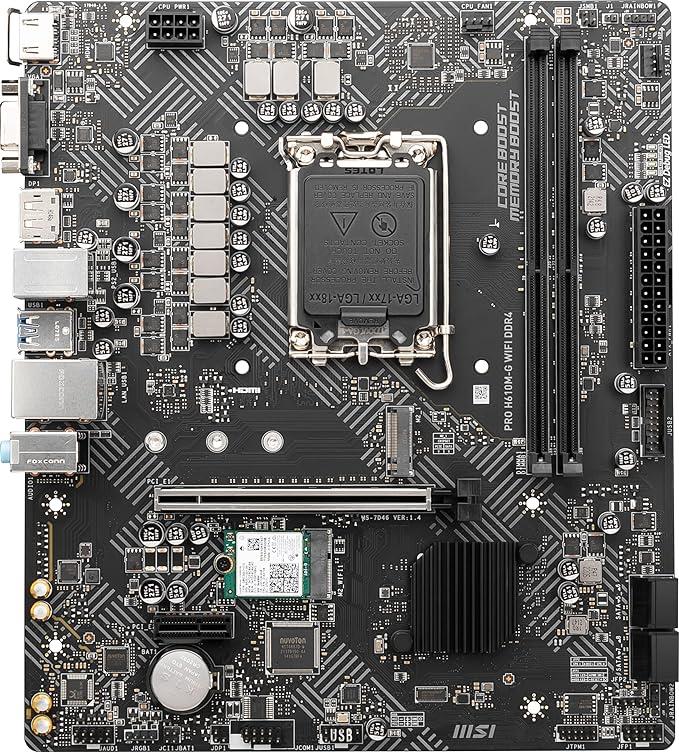

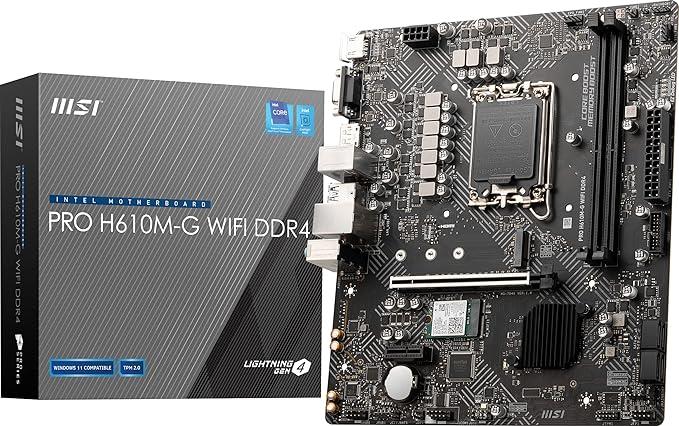

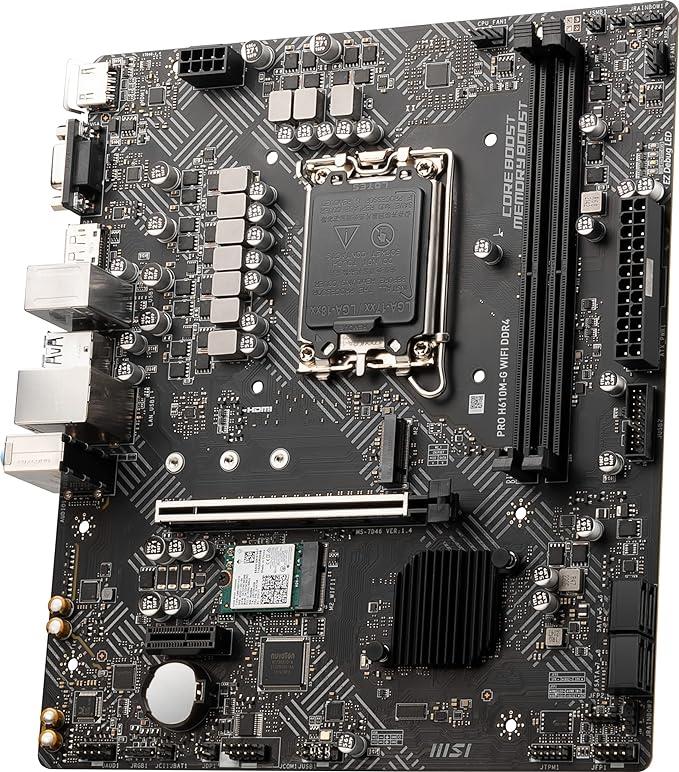

MSI PRO H610M-G WIFI DDR4 PROSERIES MOTHERBOARD LGA 1700

Brand MSI
CPU Socket LGA 1700
RAM Memory Technology DDR4
Compatible Processors Support Intel® Core™ 14th/ 13th/ 12th Gen Processors
Chipset Type Intel H610
Memory Clock Speed 3200 MHz
Model Name PRO
Brand: MSI
Availability: In Stock
Rs. 31,999
Model
BrandMSI
SeriesPRO
ModelPRO H610M-G WIFI DDR4
Supported CPU
CPU Socket Type LGA 1700
CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors

* Please go to www.msi.com to get the newest support status as new processors are released
Chipsets
Chipset Intel H610
Memory
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Maximum Memory Supported64GB
Channel Supported Dual Channel
Memory FeatureSupports non-ECC, un-buffered memory
* Please refer to www.msi.com for more information on compatible memory
Expansion Slots
PCI Express 4.0 x161 x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16
PCI Express x11 x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s ports (From H610 chipset)*
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
M.21 x M.2 slot (Key M, from H610 chipset)*
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1-Channel High Definition Audio
Onboard LAN
Second LAN ChipsetIntel I219
Max LAN Speed1Gbps
Wireless LANIntel Dual Band Wireless-AC 3168
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2

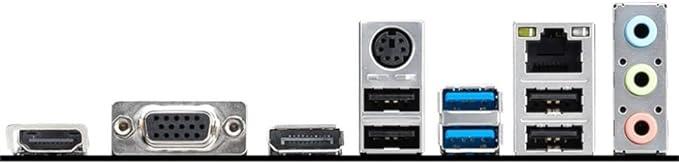

Rear Panel Ports
Back I/O Ports1 x HDMI port
1 x VGA port
1 x DisplayPort port
1 x PS/2 keyboard/ mouse combo port
4 x USB 2.0 Type-A ports (From H610 chipset)
2 x USB 3.2 Gen 1 5Gbps Type-A ports (From H610 chipset)
1 x LAN (RJ45) jack
3 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports

1 x USB 2.0 connector (From H610 chipset)
Supports additional 2 USB 2.0 ports
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LED
Physical Spec
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.3" (24.4 cm x 21.1 cm)
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows Compatibility
Windows 11Supported
Features
FeaturesMSI Center Features
- Mystic Light
- User Scenario
- Hardware Monitor
- Frozr AI Cooling
- True Color
- Live Update
- Speed Up
- Super Charger

Audio
- Audio Boost

LED
- Mystic Light Extension (RAINBOW/RGB)
- Mystic Light SYNC
- Ambient Devices Support
- EZ DEBUG LED

Performance
- Memory Boost
- Core Boost
- Lightning Gen 4 PCI-E Slot

Protection
- PCI-E Steel Armor

Experience
- Click BIOS 5
- EZ M.2 Clip
- CPU Cooler Tuning
